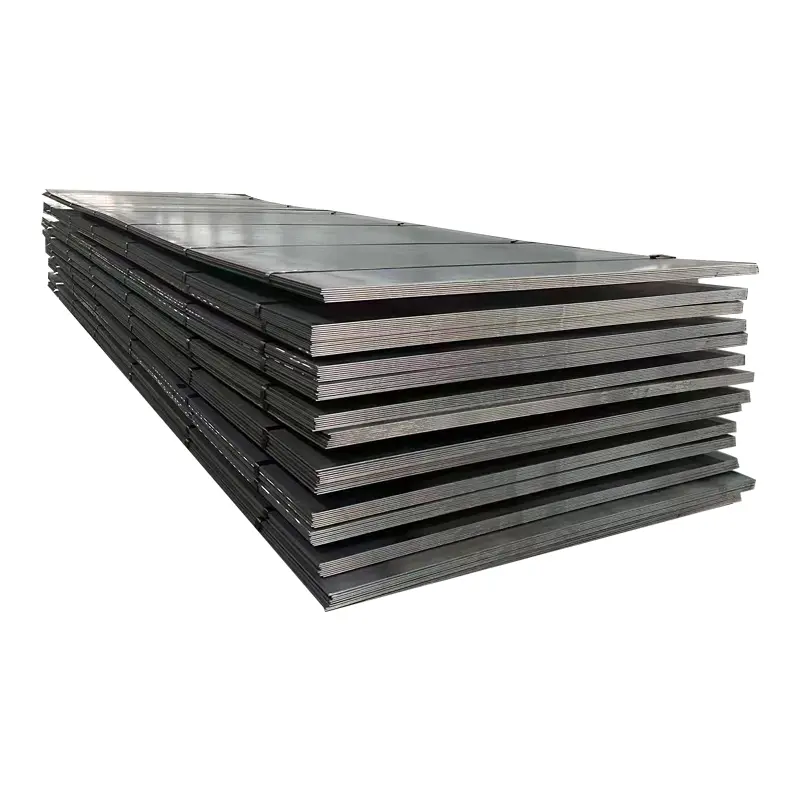

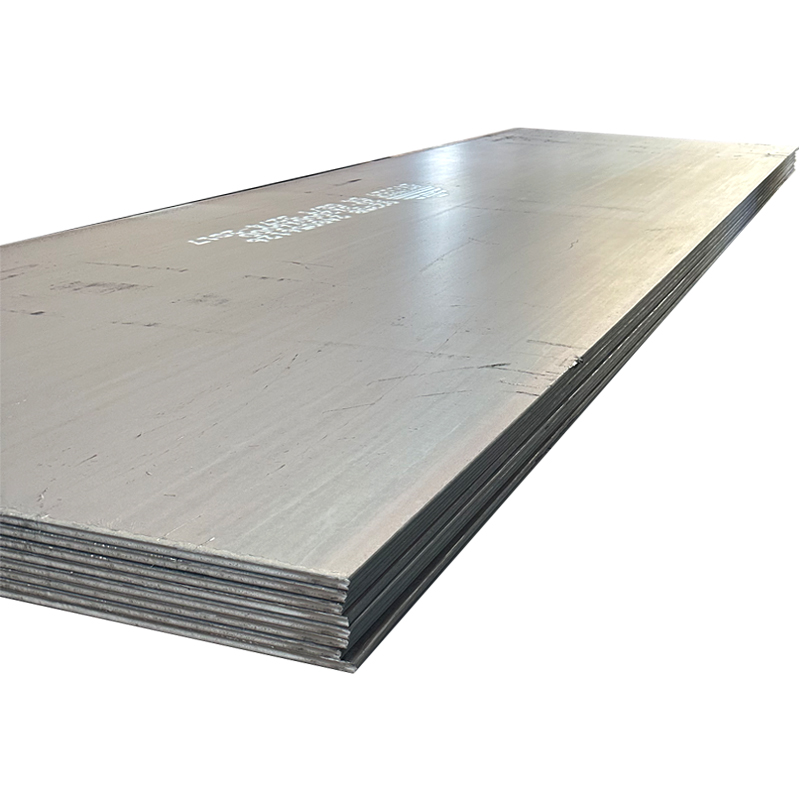

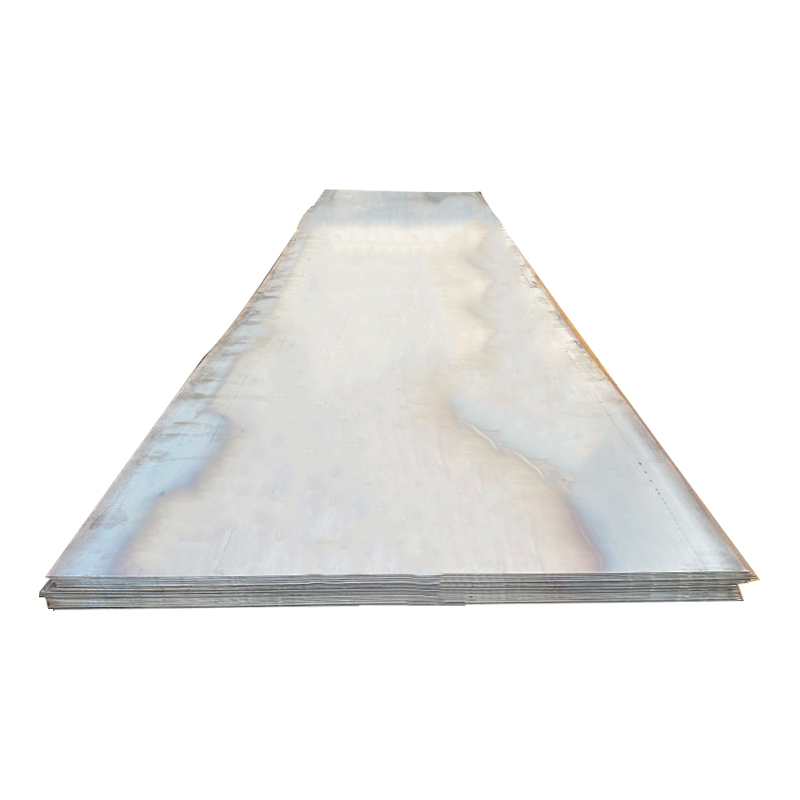

A36 Carbon Steel Plate Q345B/Q215/Q235B

Carbon steel plates are a more common choice. It is used in the construction of ships and storage vessels, including fabrication and construction. Carbon steel plates are also widely used in construction projects, including bridges, ships, and even various commercial and municipal buildings. Due to the strength provided by carbon steel, steel plates can be used to create a variety of brackets and brackets that are part of the overall structural design.

product details

Product Description

Carbon steel plate is a common metal material mainly composed of iron and carbon. According to different chemical compositions, heat treatments and processing techniques, carbon steel plates can be divided into the following categories:

1. Structural carbon steel plate

2. Weather-resistant carbon steel plate

3. Carbon steel plates for pressure vessels

4. Aluminum galvanized carbon steel plate

Carbon steel plates are widely used in construction projects, including bridges, ships, and even various commercial and municipal buildings. Due to the strength provided by carbon steel, steel plates can be used to create a variety of brackets and brackets that are part of the overall structural design..

Product Specifications

Product Name	Hot rolled Hot Rolled Steel Sheet In Coil Steel Products S275 S355 A709 A517Carbon Steel Plate
Material	Q195、Q215、Q235、Q255、Q275
level	A, B, C, D
Width	50MM~2200MM, according to customer's requirement
THICKNESS	1.8MM~20MM, according to customer's requirement
TECHNIQUE	Hot Rolled / Cold Rolled
PACKING	According to customer demand
MOQ	1 Ton, more quantity price will be lower
DELIVERY TIME	Usually within 7-20 days after receipt of advance payment

Serial number	model	size	parameter	Specification
1	Q235B	6-120mm thick, 1500-4100mm wide, 6000-28000mm long	Yield strength 235MPa, tensile strength 375-500MPa, elongation ≥26%	GB/T 700-2006
2	Q345B	6-120mm thick, 1500-4100mm wide, 6000-28000mm long	Yield strength 345MPa, tensile strength 470-630MPa, elongation ≥21%	GB/T 1591-2008
3	20#	6-120mm thick, 1500-4100mm wide, 6000-28000mm long	Yield strength ≥245MPa, tensile strength ≥410MPa, elongation ≥25%	GB/T 699-1999
4	45#	6-120mm thick, 1500-4100mm wide, 6000-28000mm long	Yield strength ≥600MPa, tensile strength ≥735MPa, elongation ≥12%	GB 699-1988
5	A36	3-200mm thick, 1220-4200mm wide, 5000-18000mm long	Yield strength 250MPa, tensile strength 400-550MPa, elongation ≥20%	ASTM A36/A36M-08
6	SS400	1.8-20mm thick, 1000-3000mm wide, 2000-12000mm long	Yield strength 245MPa, tensile strength 400-510MPa, elongation ≥17%	JIS G3101-2004

Chemical Composition

C	Cu	Fe	Mn	P	Si	S
0.25~0.290	0.2	98	1.03	0.04	0.28	0.05
Mechanical Properties
	Limit Tensile Strength	Tensile Strength,Yield Strength	Elongation at Break(Unit: 200mm)	Elongation at Break(Unit: 50mm)	Modulus of Elasticity	Bulk Modulus(Typical for Steel)	Poisson's Ratio	Shear Modulus
Metric	400~550MPa	250MPa	20%	23%	200GPa	140GPa	0.26	79.3GPa
Imperial	58000~79800psi	36300psi	20.00%	23.00%	29000ksi	20300ksi	0.26	11500ksi

Application

Can cut carbon steel, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, H-beam, I-beam, angle, channel, etc. The device is widely used in various kind of pipes profile processing field, shipbuilding industry, network structure, steel, marine engineering, oil pipelines and other industries.
